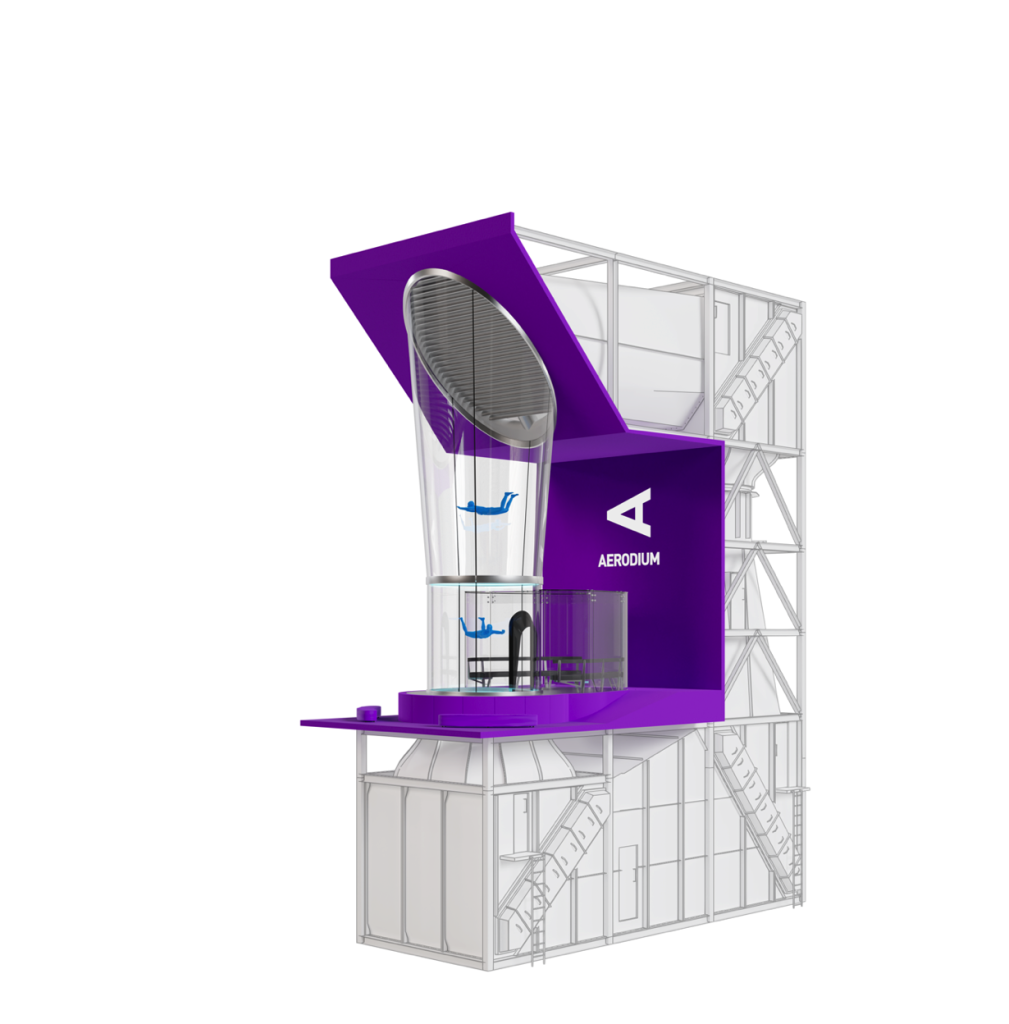

enclosed SEMI-PRO

Designed for shopping malls and entertainment centres.

Smart choice

A decade ago the dominant mindset was – the bigger the tunnel, the better. It can also be called a skydiver approach because their goals were to improve skydiving skills. Things have changed.

Nowadays the majority of investors is looking for technology with excellent performance, which at the same time ensures a reasonable payback time.

This Semi-Pro concept is designed for such clients. The focus of this model is profitability, but at the same time it provides an amplitude of fun and training possibilities for skydivers.

compact technology

Compact technology means lower investment and easier integration possibilities. While the ticket price for the experience remains the same as in large-scale tunnels, this technology ensures faster return on investment.

Investment wise this model saves on list of things like technology, shipment, installation etc. It also saves on ongoing operational costs.

Integration wise the Semi-Pro model allows saving on the space required. You can have more space for other revenue activities and capitalise on the space available.

modular design

Traditional recirculation tunnel technology requires significant local construction works because the biggest part of airflow channel is built from concrete.

This model is inspired by modular design and uses self-contained frame to support the technology. And some parts can already be assembled at the factory.

When you have fulfilled your business plan at a particular location or want to change focus, it is possible to relocate the wind tunnel to another location, if necessary.

versatile

Beginner flyers have everything they need in this tunnel – a place to experience bodyflying and a training facility where to progress.

Professional flyers will find sufficient airflow to master complicated skydiving body positions like sit fly and head down.

For the acrobats, this tunnel is a great show stage where they can express creative talent and attract spectators with flight shows.

Signature features

Semi-Pro model contains top safety and entertainment features.

  • B.A.S.E. chamber. An optional feature for experienced flyers simulating a B.A.S.E. jump exit in a controlled environment at the top of the flight chamber.
  • Impact Reduction System. Our latest invention turns the safety net at the bottom of the flight chamber into a trampoline as impact absorption surface in cases of high falls.
  • Fly Wheel Technology. A heavy steel hub for fan blades ensures higher air inertia in case of power outage and provides flyers with sufficient airflow for a safe landing.

TARGET LOCATION

Shopping mall

Increase the footfall and value of your shopping mall. With new challenges and changing consumer behavior, it is important for shopping malls to find a way to attract people to their location. Entertainment and shows is the way to go!

Stand alone location

Looking for a fresh start in a new location? Head to the suburbs and create a new sports hub for thrill seekers. Unused airport area, an old industrial zone, a business centre are some of great location examples.

Amusement park

Have an edge over other amusement parks. A wind tunnel is a great addition to roller coasters and other extreme attractions but also provides an opportunity to create amazing acrobatic shows to entertain spectators.

Family Entertainment Centre

Attract more people with a fresh and unique attraction! A wind tunnel can be a major highlight of any FEC and can help you spread your message across to a broader audience.

compare

R2

From €1.95M
Indicative price on franchise terms, EUR

R3

From €2.65M
Indicative price on franchise terms, EUR

Designed for:

Flying experience
Events
Shows
Movies

Key specs:

Maximum amount of simultaneous flyers
Maximum amount of simultaneous flyers
1 + instructor
3
1 + instructor
4
3 m / 9.8 ft
3 m / 9.8 ft
3.6 m / 12 ft
3.6 m / 12 ft
250 km/h / 155 mph
250 km/h / 155mph
265 km/h / 166 mph
265 km/h / 166 mph
Noise emission in the spectator area
Noise emission in the spectator area
63 dBA
63 dBA
63 dBA
63 dBA
300 kW
300 kW
350 kW
350 kW
1000 kVA, 3 phase
1000 kVA, 3 phase
1500 kVA, 3 phase
1500 kVA, 3 phase
12 weeks
12 weeks
16 weeks
16 weeks
No underground works required
No underground works required
Underground integration
Underground integration

Overall dimensions:

19.6 m / 64.3 ft
19.6 m / 64.3 ft
22.2 m / 72.8 ft
22.2 m / 72.8 ft
8.2 x 10.95 m / 26.9 x 35.9 ft
8.2 x 10.95 m / 26.9 x 35.9 ft
8.8 x 17.6 m / 28.9 x 57.7 ft
8.8 x 17.6 m / 28.9 x 57.7 ft
11 m / 36 ft
11 m / 36 ft
12.5 m / 41 ft
12.5 m / 41 ft
6 m / 19.7 ft
6 m / 19.7 ft
5 - 8 m / 16.4 - 26.2 ft
5 - 8 m / 16.4 - 26.2 ft
Not ideal but will get the job done Great fit! Not suitable

compare

R2

From €1.95M
Designed for:
Flying experience
Events
Shows
Movies
Key specs:
1 + instructor
3
3 m / 9.8 ft
3 m / 9.8 ft
250 km/h / 155 mph
250 km/h / 155mph
63 dBA
63 dBA
300 kW
300 kW
1000 kVA, 3 phase
1000 kVA, 3 phase
12 weeks
12 weeks
No underground works required
No underground works required
Overall dimensions:
19.6 m / 64.3 ft
19.6 m / 64.3 ft
8.2 x 10.95 m / 26.9 x 35.9 ft
8.2 x 10.95 m / 26.9 x 35.9 ft
11 m / 36 ft
11 m / 36 ft
6 m / 19.7 ft
6 m / 19.7 ft

R3

From €2.65M
Designed for:
Flying experience
Events
Shows
Movies
Key specs:
1 + instructor
4
3.6 m / 12 ft
3.6 m / 12 ft
265 km/h / 166 mph
265 km/h / 166 mph
63 dBA
63 dBA
350 kW
350 kW
1500 kVA, 3 phase
1500 kVA, 3 phase
16 weeks
16 weeks
Underground integration
Underground integration
Overall dimensions:
22.2 m / 72.8 ft
22.2 m / 72.8 ft
8.8 x 17.6 m / 28.9 x 57.7 ft
8.8 x 17.6 m / 28.9 x 57.7 ft
12.5 m / 41 ft
12.5 m / 41 ft
5 - 8 m / 16.4 - 26.2 ft
5 - 8 m / 16.4 - 26.2 ft

TIMELINE, AND RESPONSIBILITIES

Months123456789101112
AerodiumTunnel launch
Tunnel design, engineering, and adaptation
Tunnel equipment manufacturing
Tunnel equipment delivery FOB (i)
Tunnel installation and testing
Technical and business training
Client
Building design and engineering
Construction permits
Local construction
Staff hiring
Pre-launch marketing
Local operation permits

This timeline is approximate and may vary by project.

References

see projects

FAQ

What is the capacity of Aerodium vertical wind tunnels?

Vertical wind tunnels have a maximum capacity of 25 flights per hour with a flight time of 2 minutes per person.

Passive Capacity: Spectators love watching people fly in wind tunnels, including acrobatic tricks by pro flyers. The entertainment value of this attraction makes it the perfect anchor for alternative revenue sources like food and beverage, retail products, sponsorship opportunities, and corporate and competitive events.

Why are permanent installations more expensive than open-air?

Classic permanent installations require large-scale building constructions, often involving excavations to accommodate return air chambers. Everything together makes a rather massive construction with high costs. In contrast, open-air wind tunnels do not need a foundation and can be placed on any even surface, such as a parking lot.

Franchise or outright ownership?

You have a choice between both – franchising and outright ownership. With outright ownership, you have more freedom to operate the business as you wish. The downside is that it will require a much deeper involvement and building your own brand. In the franchise option, you would get a full support package and the renowned Aerodium branding, which both will facilitate running the business.
